Custom rectangle Fire Pit Kit 52″ x 22″

SKU: CUSTOM KIT 52x22R-12-NG

Transform your outdoor living space with the Custom Rectangle Fire Pit Kit (52″ × 22″). This robust DIY kit features a powder-coated steel frame perfectly sized for a 36″ linear burner, stainless steel burner pan and tube, and a powerful 150,000 BTU match-lit system. Designed to be finished with your choice of stone, tile or stucco, this kit gives you the foundation for a custom fire feature that blends durability with your personal style.

1 Frame Height: Select Frame Height
2 Gas Type: Select Gas Type
3 Cement Board Frame: Select Cement Board Frame
$2,469
Save $-2,469
$2,469 Sale
Sale Sold out
  • Free Shipping on this product
  • Shop With Confidence With Our Price Match Promise

Watch video about Fire Pit Outfitter

View full details
  • Description
  • Shipping
  • Specifications
  • FAQs
Back

Discover Our Customizable DIY Kits

New! Rectangular fire pit kit with stainless steel linear burner tube and trough-style burner pan.

  • 52″ x 22″ Custom Powder Coated Steel Frame with cut-out to support 36″ linear style burner.
  • 36″ Linear Stainless Steel Torpedo Burner
  • Stainless Steel Burner Pan/ Plate
  • Manual 1/4 Turn Valve for a match-lit system
  • Valve Mount
  • (2) 24″ High Capacity Flex Lines
  • 150,000 BTU's
  • Ready for your finish materials.

To determine the actual finished fire pit size:

  1. For Width Add: 1/2″ per side for cement board, 2″ per side for stone veneer, 2″ per side for top material overhang. (ie: 27″+1″+4″+4″=36″)
  2. For Height Add: 1/2″ for cement board, ?” for the thickness of top material. (ie: 16″ frame height + 1/2″cement board + 2″ stone top = 18 1/2″)

These dimensions are approximate and will vary dependent on the actual material thicknesses you use.

Custom Product: Will ship in 4 weeks

Back

Free shipping on most orders over $129 within 48 Contiguous Unites States.

  • Order processing time: 1 business day.
  • Estimated delivery: 2-4 weeks from the order date. Times may vary based on product availability.
  • Call us at 1-800-979-3267 to verify shipping lead time.
  • Most products are shipped from our warehouse in Littleton, Colorado.
  • Some custom-finished products and special items will ship from the manufacturer. In these cases additional shipping time is needed.
  • Additional shipping fees apply to Canada, Alaska and Hawaii.

Questions?

Back

What size finished fire pit will this kit produce?

The kit’s frame is 52″ × 22″ and designed to support a 36″ linear burner. To determine your final dimensions: allow for approximately ½″ per side for cement board, plus around 2″ per side for stone veneer, and around 2″ per side for top overhang. For height, add about ½″ for backer board plus your top-material thickness.

What fuel and ignition type does this kit use?

This version uses a match-lit system (manual 1/4-turn valve) and supports either natural gas or liquid propane, depending on the variant you order. The listing states “Gas Type: Select Gas Type – Natural Gas or Liquid Propane” at time of purchase.

What is the lead time and shipping details?

Because this is a custom-sized kit, it ships in approximately 4 weeks. Shipping is free for most orders over $129 within the contiguous U.S. Additional shipping fees may apply to Alaska, Hawaii and Canada.

What finish materials can I use and what should I consider?

You may finish the kit with stone veneer, tile, stucco, or other materials of your choosing. Be sure to account for material thickness when estimating final dimensions (see answer to Q1). Also verify local codes and proper ventilation, and ensure your fuel line and clearance meet the burner manufacturer’s recommendations.

Back
SKU CUSTOM KIT 52x22R-12-NG
Manufacturer Colorado Hearth & Home
Weight 149.0 lb
Shape Rectangle

Why This Fire Pit Kit Stands Out

Built for performance and designed for customization, this rectangular fire pit kit gives you a strong foundation for a premium outdoor feature. Each component is engineered for reliability, ease of installation, and long-lasting flame quality.

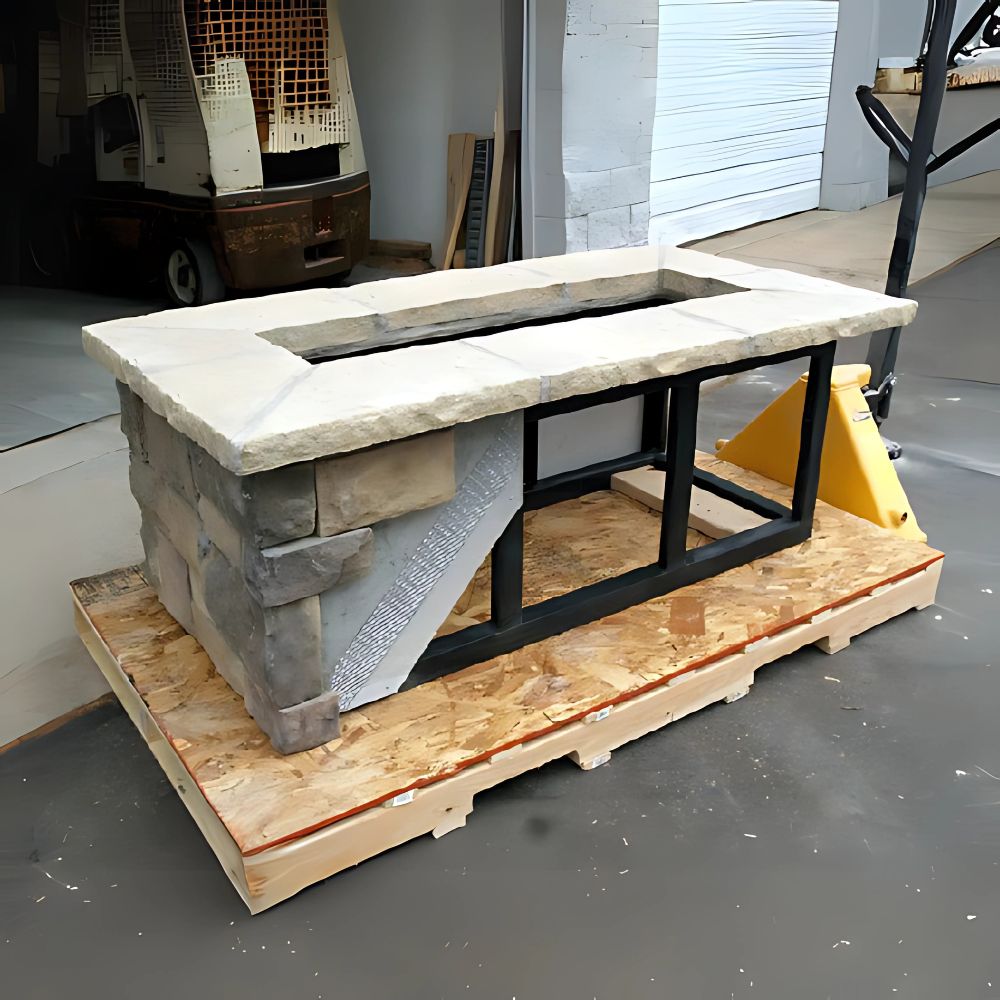

A rectangular custom fire pit kit with a stainless steel linear burner tube and trough-style burner pan, mounted on a wooden pallet.

Premium Burn System

Includes a 36″ linear stainless-steel burner and matching trough-style burner pan, delivering approximately 150,000 BTUs for bold, even flame performance.

Buy Now

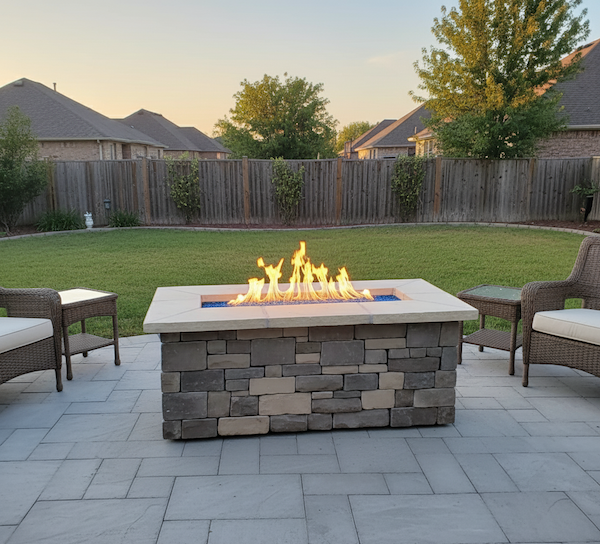

Fire pit table built with Custom rectangle Fire Pit Kit 52″ x 22″ with flames on a patio area with chairs and a grassy yard in the background.

Ready for Finishing

The 52″ × 22″ powder-coated steel frame is built to integrate seamlessly with backer materials and your chosen veneer. The kit arrives ready, just add your finish materials.

DIY-Friendly but Built for Longevity

Comes with manual 1/4-turn valve, two 24″ high-capacity flex lines, and a stainless steel burner pan/frame. With the structural foundation handled, you get freedom to adapt the aesthetic to your space.
