Custom rectangle Fire Pit Kit 52″ x 22″

Back

New! Rectangular fire pit kit with stainless steel linear burner tube and trough-style burner pan.

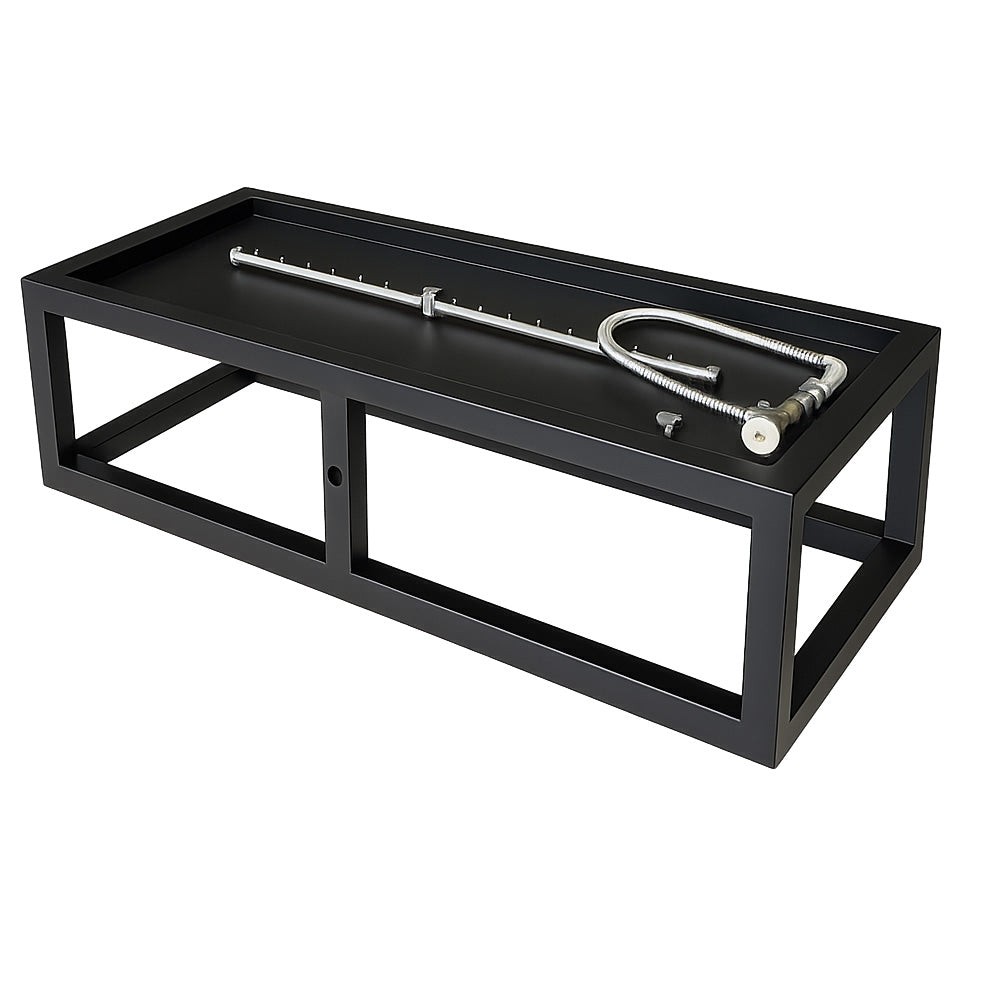

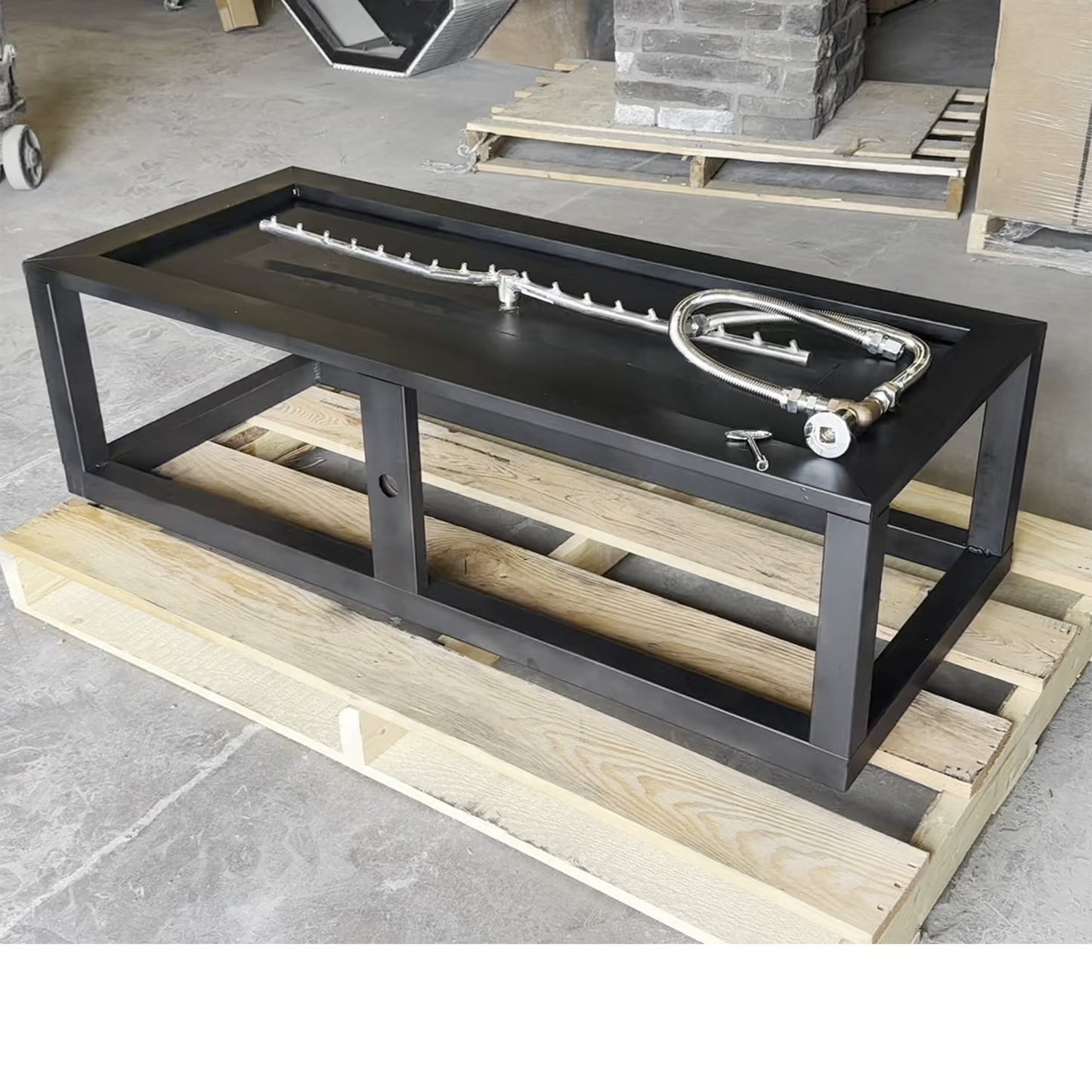

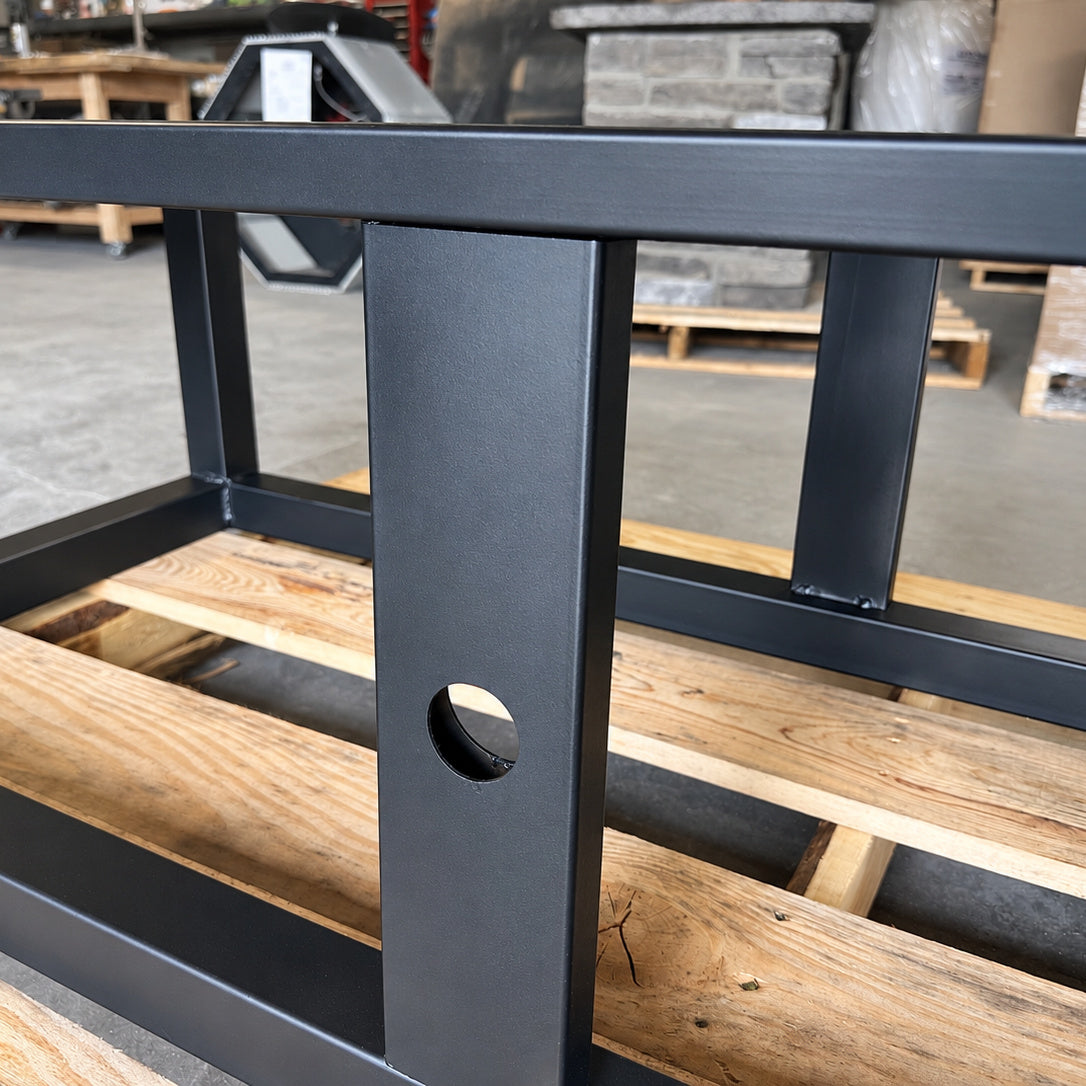

52″ x 22″ Custom Powdercoated Steel Frame with cut-out to support 36″ linear style burner and trough burner pan
Stainless Steel Trough Burner Pan. 39″ x 8″ (outside dimension) with 1 1/2″ lip to drop into our frame cut-out. The inside opening is 36″ x 5″
36″ Linear Stainless Steel Burner Tube

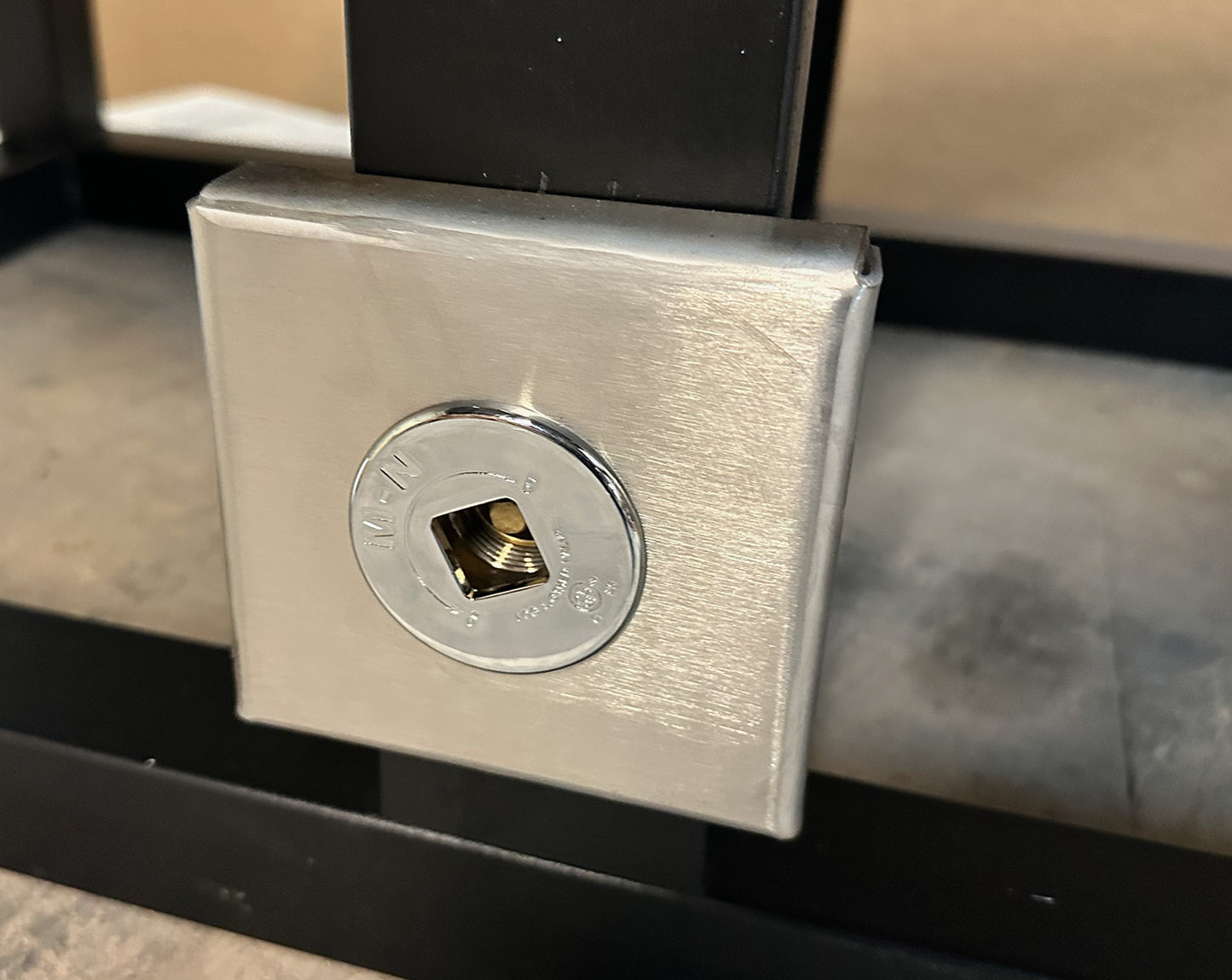

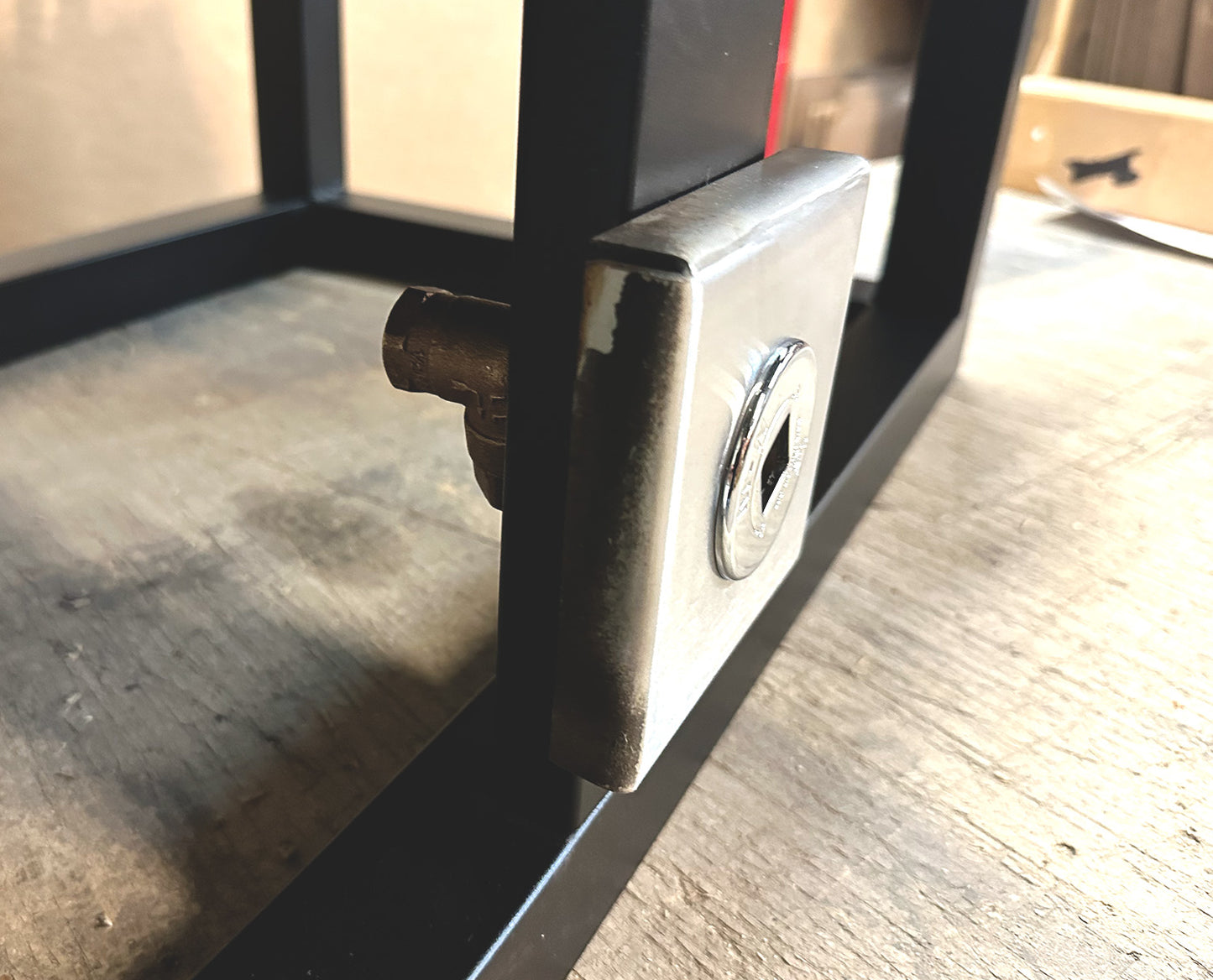

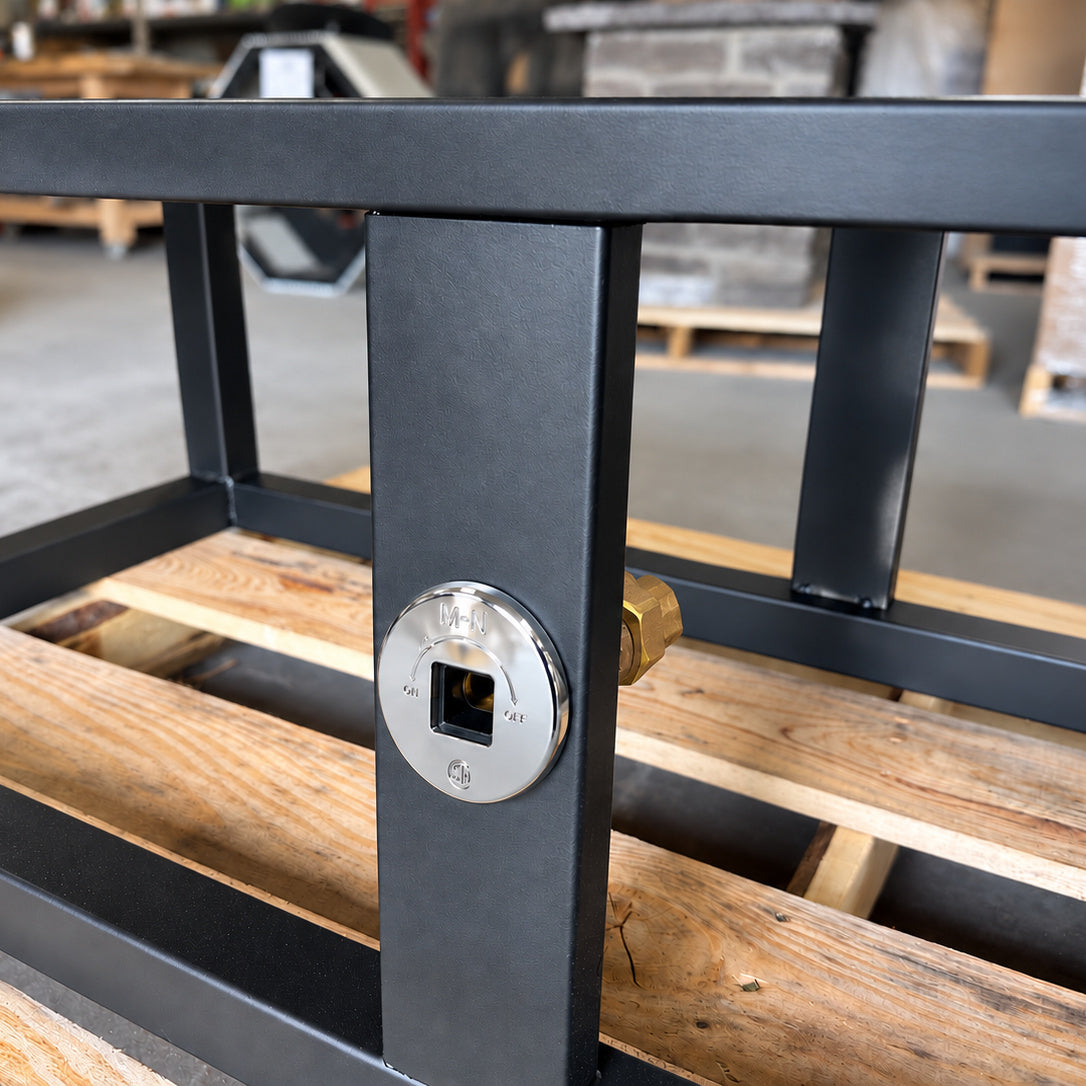

Manual 1/4 Turn Valve for a match-lit system
(2) 24″ High Capacity Flex Lines
150,000 BTU's
Ready for your finish materials.

To determine the actual finished fire pit size:

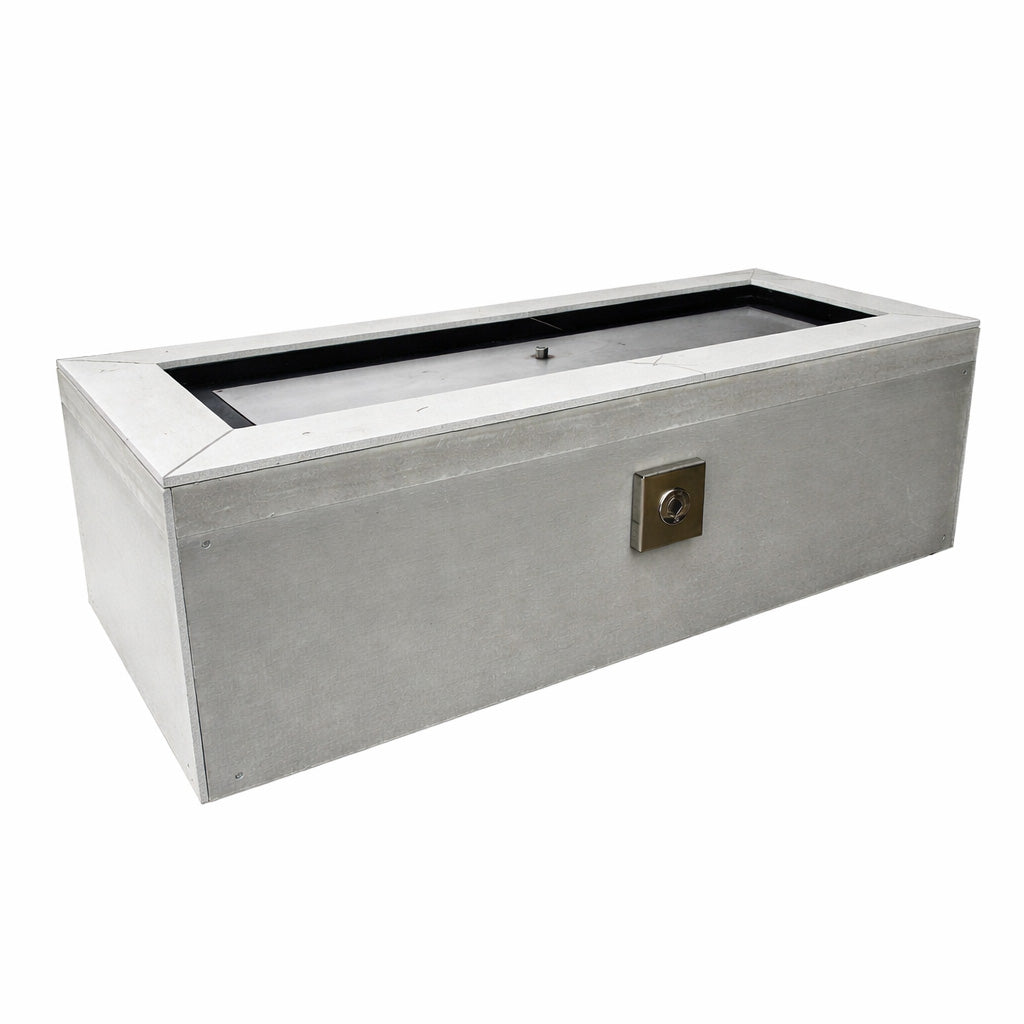

For Width Add: 1/2″ per side for cement board, 2″ per side for stone veneer, 2″ per side for top material overhang. (ie: 27″+1″+4″+4″=36″)
For Height Add: 1/2″ for cement board, ?” for the thickness of top material. (ie: 16″ frame height + 1/2″cement board + 2″ stone top = 18 1/2″)

These dimensions are approximate and will vary dependent on the actual material thicknesses you use.

Custom Product: Will ship in 4 weeks
