Custom Octagon Fire Pit Kit 27″

Description
Shipping
Specifications
FAQs

Back

Discover Our Customizable DIY Kits

This is the kit we use to build our 36″ octagon Custom Stone Fire Pit.

It measures 27″ across from flat edge to flat edge and can be custom sized from 12″ to 24″ in height. Comes complete with everything you need to build your fire pit except the cement board and finish materials.

Includes:

Custom Powder-coated Steel frame made from 2″ steel tubing.
18″ Powder Coated Flat Burner Pan
12″ Stainless Steel Burner Ring
Manual 1/4 Turn Valve for a match-lit system
(2) 24″ High Capacity Flex Lines

These kits make it easy for you to create a true custom gas fire pit. Skin the frame with a cement board and then add your choice of finish materials over the cement board. The fire pit frame takes the guesswork out of how to support your burner ring and fill material (lava rock, glass, outdoor logs…).

To determine the actual finished fire pit size:

For Width Add: 1/2″ per side for cement board, 2″ per side for stone veneer, 2″ per side for top material overhang. (ie: 27″+1″+4″+4″=36″)
For Height Add: 1/2″ for cement board, ?” for the thickness of top material. (ie: 16″ frame height + 1/2″cement board + 2″ stone top = 18 1/2″)

These dimensions are approximate and will vary dependent on the actual material thicknesses you use.

Custom Product: Will ship in 4-6weeks

Back

What is the heat output (BTU) of the CUSTOM KIT 27F-24-NG?

It has a heat output of 150,000 BTU.

What type of ignition system does this fire pit kit use?

This is a match-lit fire pit kit. The burner is ignited manually using a lighter or match while opening the key valve. Flame height is adjusted using the valve, and the system is shut off by closing the gas supply.

What type of fire pit enclosure works best with this kit?

This kit is designed for custom-built fire pits with a 33″ interior opening. It works well in masonry, stone, concrete, or metal enclosures where proper ventilation and clearance are provided.

What fire media can be used with this kit?

The burner is compatible with common fire pit media such as lava rock or fire glass. Media should be installed according to recommended depth guidelines so the burner ports remain unobstructed.

Back

SKU	CUSTOM KIT 27F-12-NG
Manufacturer	Colorado Hearth & Home
Weight	50.0 lb
Shape	Octagon

A Compact Octagon Fire Pit Kit with Balanced Flame Presence

The Custom 27″ Octagon Fire Pit Kit is designed for smaller outdoor spaces that still demand a strong visual impact. Featuring a unique octagon layout, this kit provides an even flame pattern and a complete match-lit solution for custom-built fire pits. It is a great choice for patios, courtyards, and intimate outdoor gathering areas where clean design and dependable performance matter.

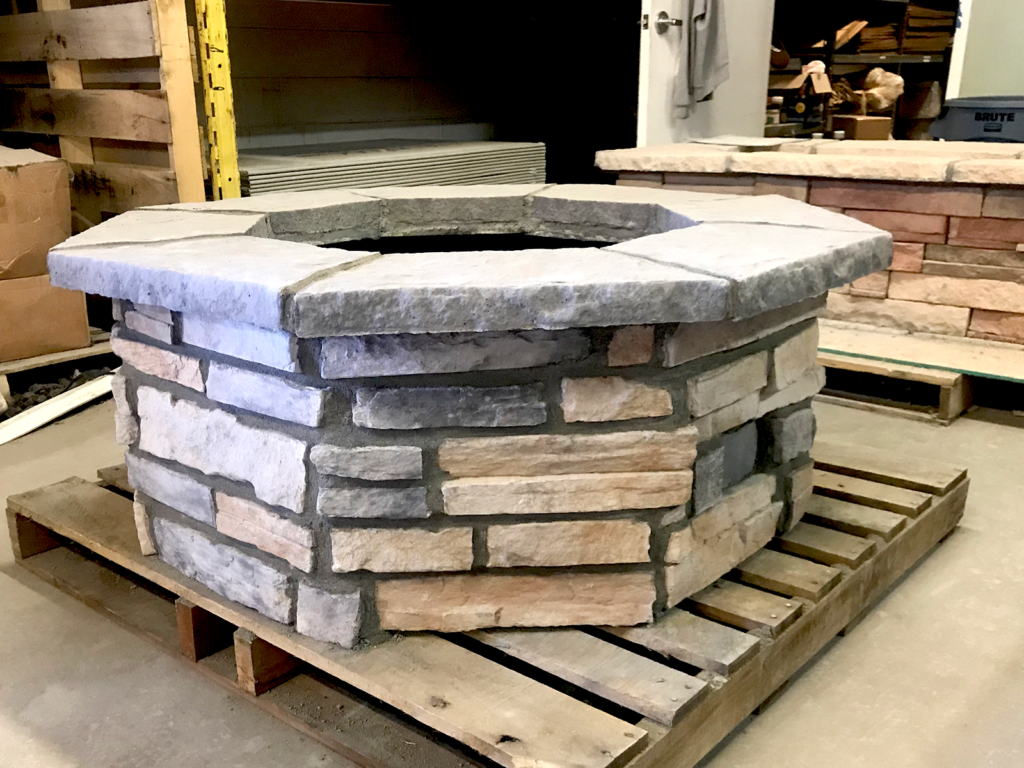

A Custom Octagon Fire Pit Kit 33″ with stonework applied.

Distinctive Octagon Burner

The octagon design delivers a visually appealing flame pattern that fills the fire pit evenly. It offers a unique alternative to traditional round or rectangular burners while maintaining a natural, campfire-style look.

Buy Now

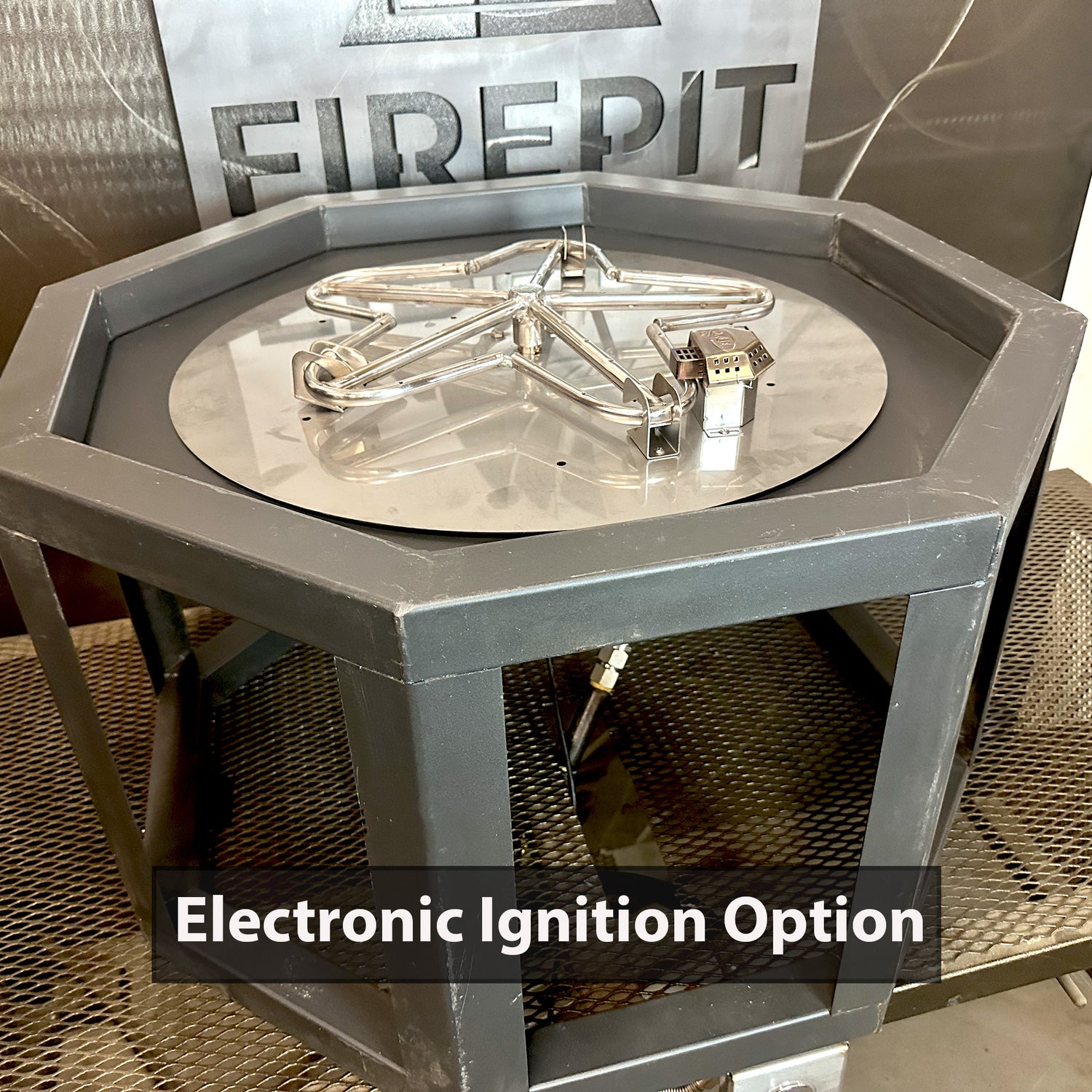

Components of a Custom Octagon Fire Pit Kit

Sized for 27″ Fire Pits

Designed to fit custom fire pits with a 27″ interior opening, this kit allows for proper clearance around the burner. The result is a cleaner installation and consistent flame presentation within compact fire features.

A lit up 46" Octagon Custom Stone Gas Fire Pit in a winter countryside backyard.

Complete Match-Lit Fire Pit Kit

This kit includes the burner and essential components needed to build a functional match-lit gas fire pit. Manual key valve operation provides simple, reliable ignition without electronic controls, making it suitable for both DIY builds and professional installations.
