HPC 30″ Square Flat Pan Torpedo Burner Electronic Ignition System

Keep reading to know how these Torpedo Burner Electronic Ignition Systems work. Read more
1 Gas Type: Select Gas Type
Regular price $3,698.42
Regular price Sale price $3,698.42
Sale Sold out
  • Shop With Confidence With Our Price Match Promise
  • Free Shipping On All Orders Over $129
View full details

Customer Reviews

Be the first to write a review


Introducing our Electronic Ignition Kits

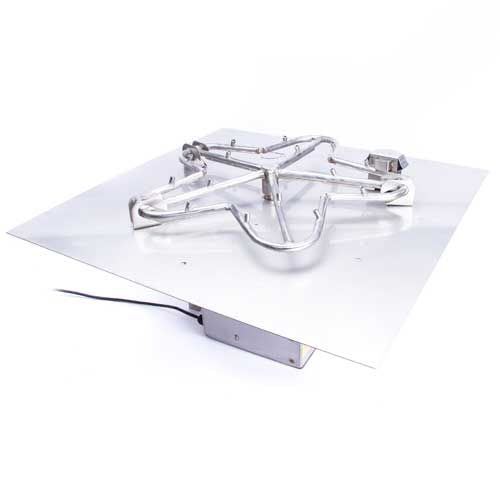

These HPC Square Flat Pan Torpedo Burner Electronic Ignition Fire Pit insert kits comprise:

  • Square Flat Pan fitted with a Torpedo Penta Burner
  • Electronic Ignition system mounted to the underside of the fire pit pan
  • The system is also available with a standard Penta Burner
  • The complete system is fully assembled and ready for installation
  • Fitted with the Torpedo Burner, the On/Off version is available in six sizes.
  • Hi/Lo units are available in four sizes.

How It Works

  1. Start-Up: This is done by use of a wall switch or remote control. The system completes initial safety checks and starts the pilot gas flow when the ON command is received. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
  2. Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
  3. Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.


  • Fully Assembled- ready to install. Control components are protected within valve box.
  • Start via wall switch, remote or whole house system; auto re-light if flame is lost.
  • Ignition is complete using a robust and reliable Hot Surface igniter.
  • On/Off models: Use optional wall switch or Remote Control available.
  • High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
  • 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
  • 24vac Option: Typically used poolside or with other lower voltage requirements.
  • Natural Gas or Liquid Propane: Factory built & tested for either fuel.
  • Internal temperature monitoring with overheat auto shutoff.
  • CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
  • Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.

High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).

HPC 30″ Square Flat Pan Torpedo Burner Electronic Ignition System


Manufacturer Hearth Products Controls
Weight 160.0 lb
Ignition 110V Ignition
Shape Square

Documents & Downloads
