HPC 24″ x 12″ Torpedo H-Burner Hot Surface Electronic Ignition System

Description
Shipping
Specifications
FAQs

Back

NEW!
Now available as a flat pan system.

How Our Electronic Ignition System Works

Start-Up: This is done by use of a wall switch or remote control. The system completes initial safety checks and starts the pilot gas flow when the ON command is received. After 5 seconds the hot surface igniter glows igniting the pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures/voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features:

Fully Assembled- ready to install. Control components are protected within valve box.
Start via wall switch, remote or whole house system; auto re-light if flame is lost.
Ignition is complete using a robust and reliable Hot Surface igniter.
On/Off models: Use optional wall switch or Remote Control available.
High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
24vac Option: Typically used poolside or with other lower voltage requirements.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Internal temperature monitoring with overheat auto shutoff.
CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.

High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).

The "ON/OFF" variation of this burner kit will require an external switch, timer, or optional remote (SKU: 578-C) to operate, while a remote control is included for the "HI/LO" variation. The "HI/LO" version of this burner kit is also compatible with the HPC smartphone app for added convenience. HI/LO units offer two flame height selections for user customizability. The "HI" setting offers maximum flame height and power, while the "LO" setting cuts the flame by 40 percent. In addition, the phone app allows on/off, timer, and troubleshooting functionality. NOTE: This product is not intended for use with small fuel tanks.

Back

What is the advantage of an H-burner design?

An H-burner produces an even flame pattern across the width of rectangular fire pits, helping eliminate cold spots and creating a fuller flame appearance.

What type of ignition system is included?

This system includes electronic ignition, providing convenient startup and improved reliability over manual match-lit systems.

Can this be used with natural gas or propane?

Yes. The system can be configured for natural gas or liquid propane depending on the selected model. Always verify gas supply requirements and local code compliance before installation.

Is professional installation recommended?

Yes. Because this system includes electronic ignition and gas connections, installation should be completed by a qualified professional and must comply with local building and gas codes.

Back

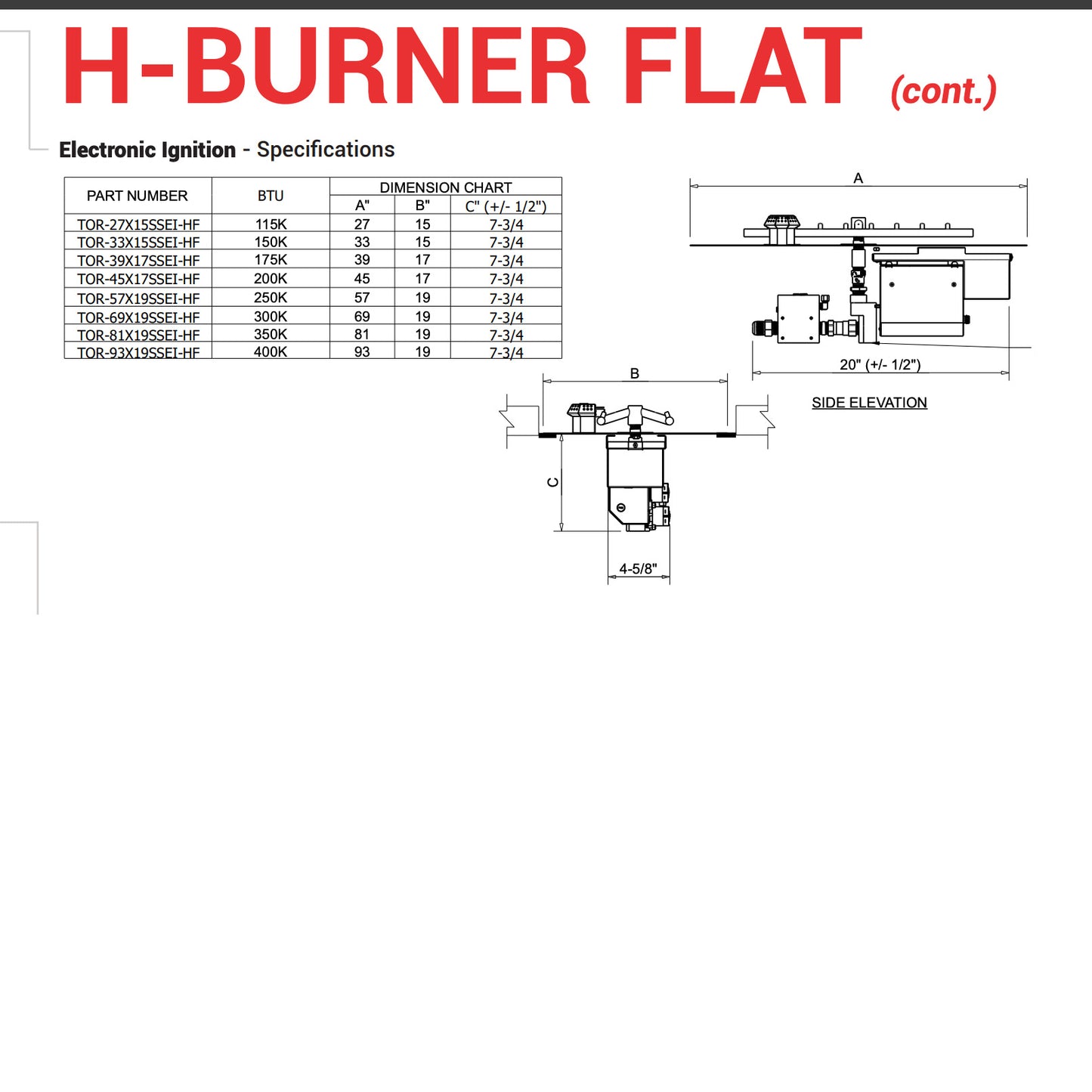

SKU	TOR-27x15SSEI-NG
Manufacturer	Hearth Products Controls
Weight	151.0 lb
Ignition	110V Ignition
Shape	H

Documents & Downloads

High-Performance Flame with Convenience

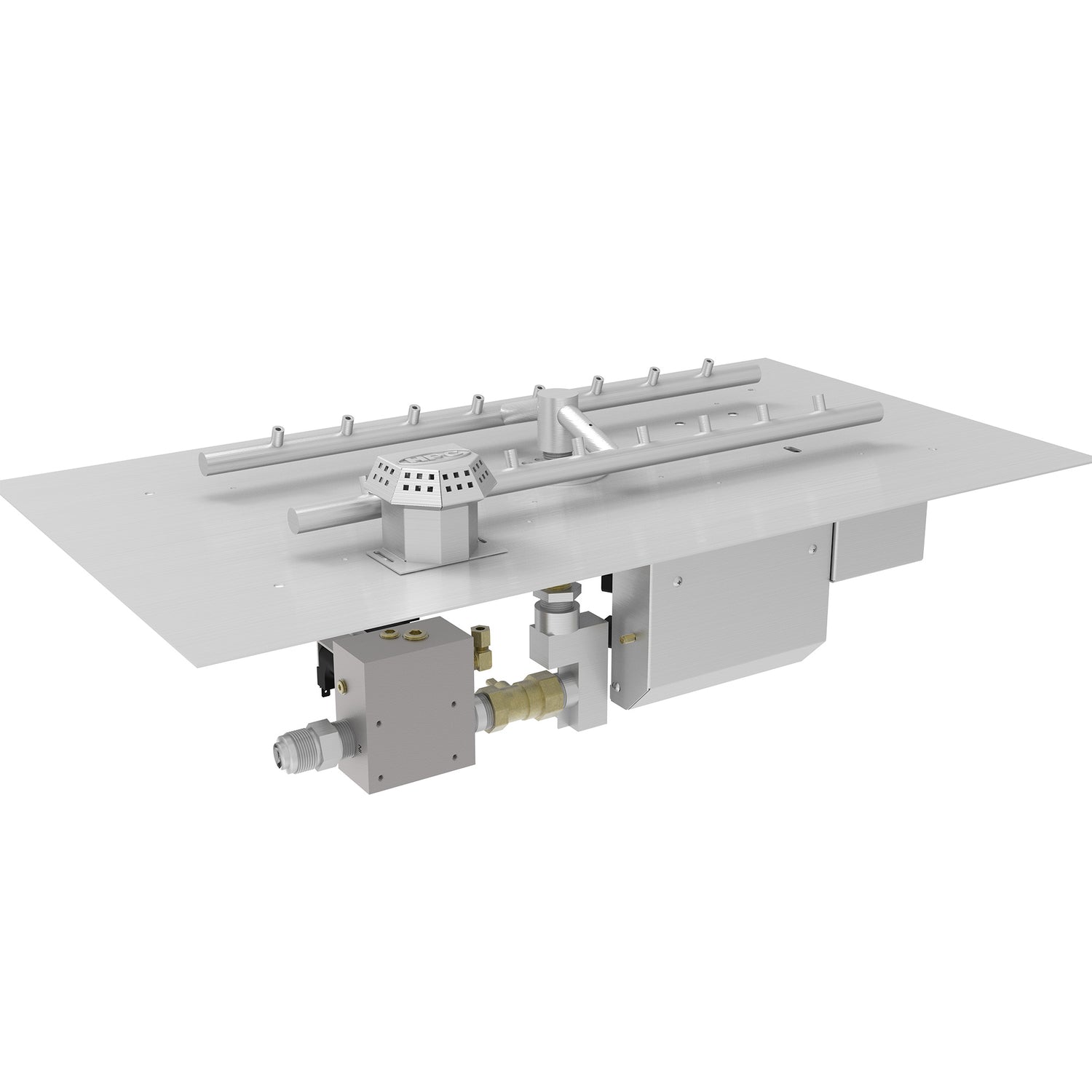

The Torpedo Flat Pan with H-Burner Electronic Ignition delivers powerful, evenly distributed flame performance combined with modern ignition control. Designed for custom gas fire pits, this complete system integrates a stainless steel H-burner with a torpedo-style flat pan and electronic ignition for reliable starts and operation.

H-Burner for Even Flame Distribution

The stainless steel H-burner design creates a balanced, symmetrical flame pattern that fills rectangular and linear fire pits evenly from end to end.

Buy Now

Electronic Ignition System

Equipped with an electronic ignition system for convenient lighting and dependable performance. Designed for reliable startups and enhanced user control compared to match-lit systems.

Torpedo Flat Pan Design

The stainless steel torpedo pan provides a clean installation surface, supports fire media such as lava rock or fire glass, and helps optimize airflow within the enclosure.

Buy Now
