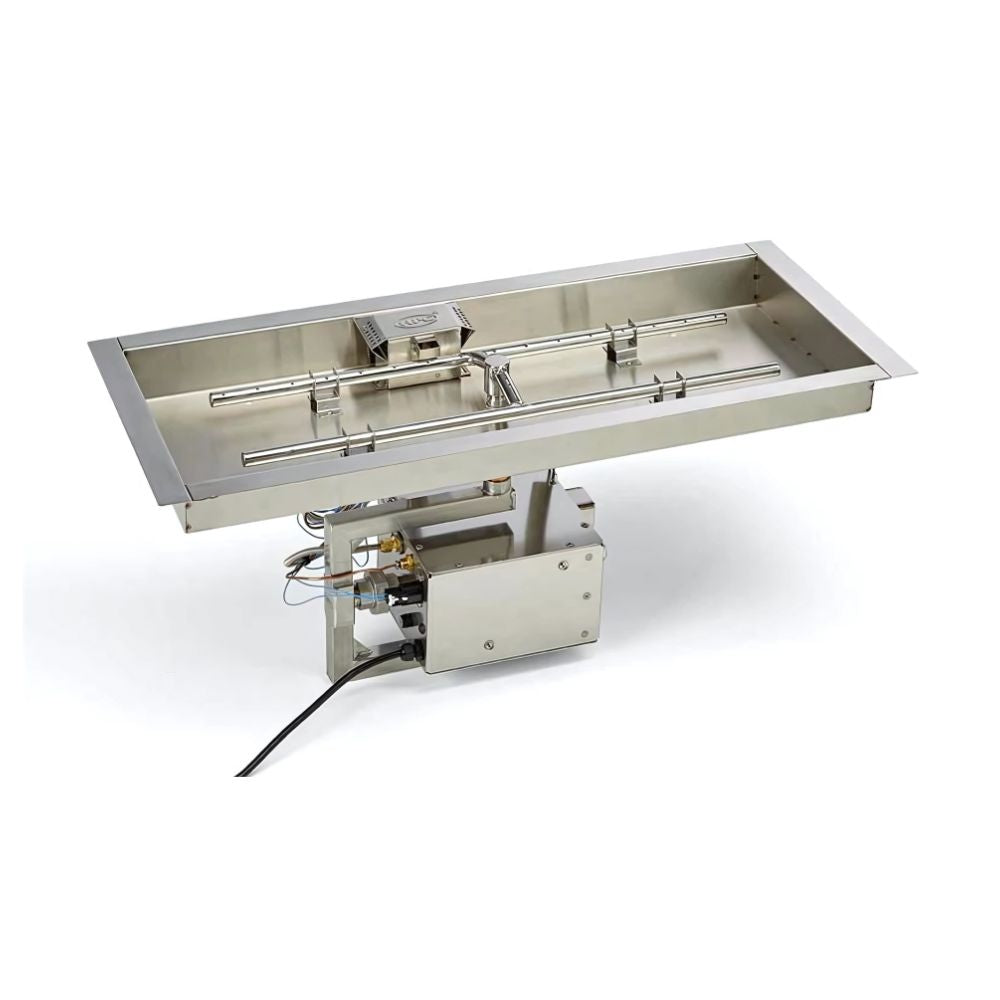

78″ X 16″ Rectangle S Burner High/Low Electronic Ignition System

Name: 78″ X 16″ Rectangle S Burner High/Low Electronic Ignition System
Brand: Hearth Products Controls
SKU: 78X16SSEI-S-HI/LO-120VAC-NG
Price: 5015.94 USD
Availability: InStock

SKU: 78X16SSEI-S-HI/LO-120VAC-NG

Our 78″ X 16″ Rectangle S Burner High/Low Electronic Ignition System is the ideal choice for your fire pit.

1 Gas Type: Select Gas Type

Natural Gas

Liquid Propane

Product variants

$5,015.94

Save $-5,015.94

$5,015.94 Sale

Sale Sold out

QTY

Price Match Guaranteed
Free Shipping on orders over $129

Watch video about Fire Pit Outfitter

View full details

Description
Specifications

Back

This is an oversized item and shipping charges may apply.

Introducing Our Electronic Ignition Kits

Enhance your fire pit experience with our 78″ X 16″ Rectangle S Burner High/Low Electronic Ignition System.

Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features:

Fully Assembled- ready to install. Control components are protected within valve box.
Start via wall switch, remote or whole house system; auto re-light if flame is lost.
Ignition is complete using a robust and reliable Hot Surface igniter.
On/Off models: Use with optional wall switch or Remote Control available.
High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
24vac Option: Typically used pool side or with other lower voltage requirements.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Internal temperature monitoring with overheat auto shutoff.
CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.
High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
