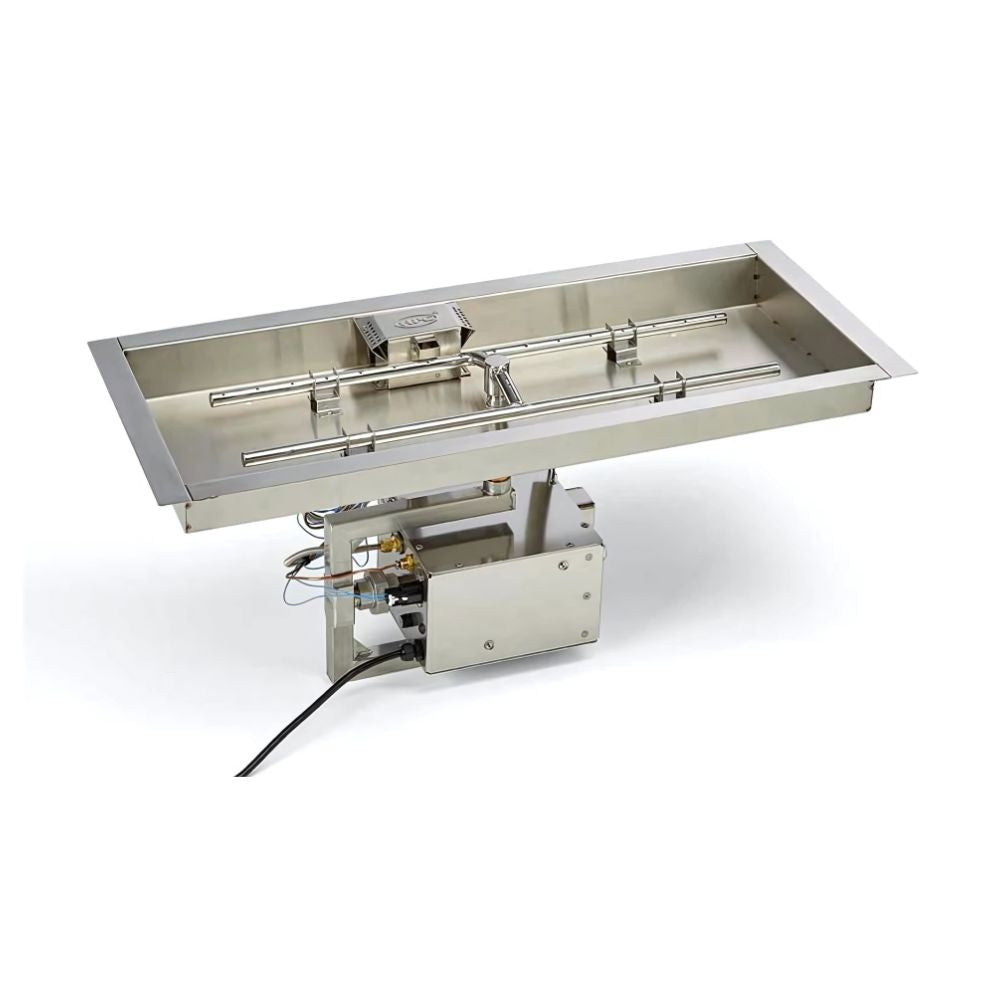

54″ X 16″ Rectangle High/Low Electronic Ignition System

Name: 54″ X 16″ Rectangle High/Low Electronic Ignition System
Brand: Hearth Products Controls
SKU: 54X16SSEI-H-HI/LO-120VAC-NG
Price: 4476.45 USD
Availability: InStock

SKU: 54X16SSEI-H-HI/LO-120VAC-NG

Introducing Our Electronic Ignition Kits. Enhance your fire pit experience with our 54″ X 16″ Rectangle High/Low Electronic Ignition System.

1 Gas Type: Select Gas Type

Natural Gas

Liquid Propane

Product variants

$4,476.45

Save $-4,476.45

$4,476.45 Sale

Sale Sold out

QTY

Price Match Guaranteed
Free Shipping on orders over $129

Watch video about Fire Pit Outfitter

View full details

Description
Specifications

Back

Introducing Our Electronic Ignition Kits

Enhance your fire pit experience with our 54″ X 16″ Rectangle High/Low Electronic Ignition System.

Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features:

Fully Assembled- ready to install. Control components are protected within valve box.
Start via wall switch, remote or whole house system; auto re-light if flame is lost.
Ignition is complete using a robust and reliable Hot Surface igniter.
On/Off models: Use with optional wall switch or Remote Control available.
High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
24vac Option: Typically used pool side or with other lower voltage requirements.
Natural Gas or Liquid Propane: Factory built & tested for either fuel.
Internal temperature monitoring with overheat auto shutoff.
CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.
High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
