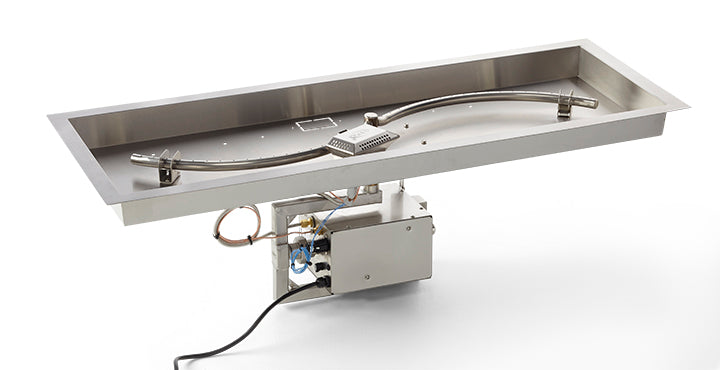

42″ X 14″ S Burner Hot Surface Electronic Ignition System
- Shop With Confidence With Our Price Match Promise
- Free Shipping On All Orders Over $129
PRODUCT DESCRIPTIONHow It Works Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame. Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
On/Off Models: Includes the convenience and safety features- optional remote control available. High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).
Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.
- Fully Assembled- ready to install. Control components are protected within valve box.
- Start via wall switch, remote or whole house system; Auto re-light if flame is lost.
- Ignition is complete using a robust and reliable Hot Surface igniter.
- On/Off models: Use with optional wall switch or Remote Control available.
- High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
- 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
- 24vac Option: Typically used pool side or with other lower voltage requirements.
- Natural Gas or Liquid Propane: Factory built & tested for either fuel.
- Internal temperature monitoring with overheat auto shutoff.
- CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
- Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.
Model # / Description / BTU36X14SSEI-S / 36×14″ pan with S-Fire Burner / 75K 42X14SSEI-S / 42×14″ pan with S-Fire Burner / 85K 54X16SSEI-S / 54×16″ pan with S-Fire Burner / 110K 66X16SSEI-S / 66×16″ pan with S-Fire Burner / 135K 78X16SSEI-S / 78×16″ pan with S-Fire Burner / 165K
|Manufacturer||Hearth Products Controls|
