Introducing Our Electronic Ignition Kits

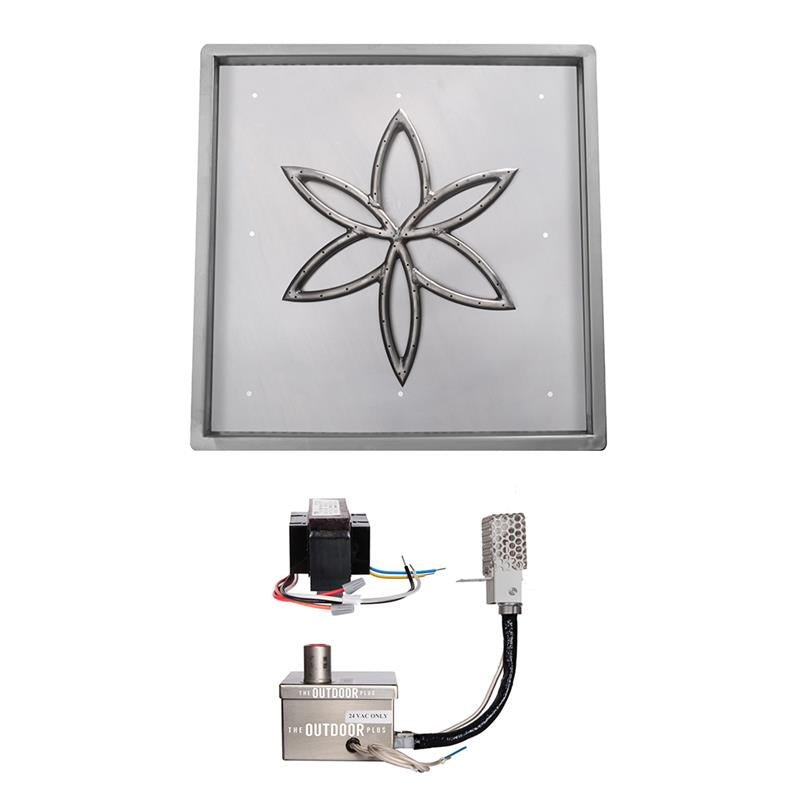

Enhance your fire pit experience with our Square SS Drop In All Weather Systems with Lotus Burner - LC Certified (except for 48″ system).
The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical.
Available in 6 sizes: 16″-30″ have 1/2″ hub, the larger sizes have a 3/4″ hub
Pan Size:
- 16″ 90K BTU – 12″ Burner
- 18″ 100K BTU – 12″ Burner
- 24″ 160K BTU – 18″ Burner
- 30″ 190K BTU – 24″ Burner
- 36″ 260K BTU – 30″ Burner
- 48″ 350K BTU – 36″ Burner (not certified)
- Also available in custom sizes
All Weather Electronic Ignition System AWEIS
- New “Dual Pilot Gas Technology” which prolongs life of Igniter considerably
- Maximum Gas Output: 290K Btu/hr
- Inlet Gas Press. Limit: 0.5 PSI
- Standard Pilot Burner Configuration: (1) Pilot Burner
- Inlet / Outlet Size: 1/2” FIP
- Electrical Rating: 24VAC
- Flame / Heat Sense: Thermopile
- Ignition Type: Silicon Nitride Hot Surface Ignition (Glow Plug)
- Control Box Dimensions: 4 1/2” x 5” x 4 1/2” (W x L x H)
