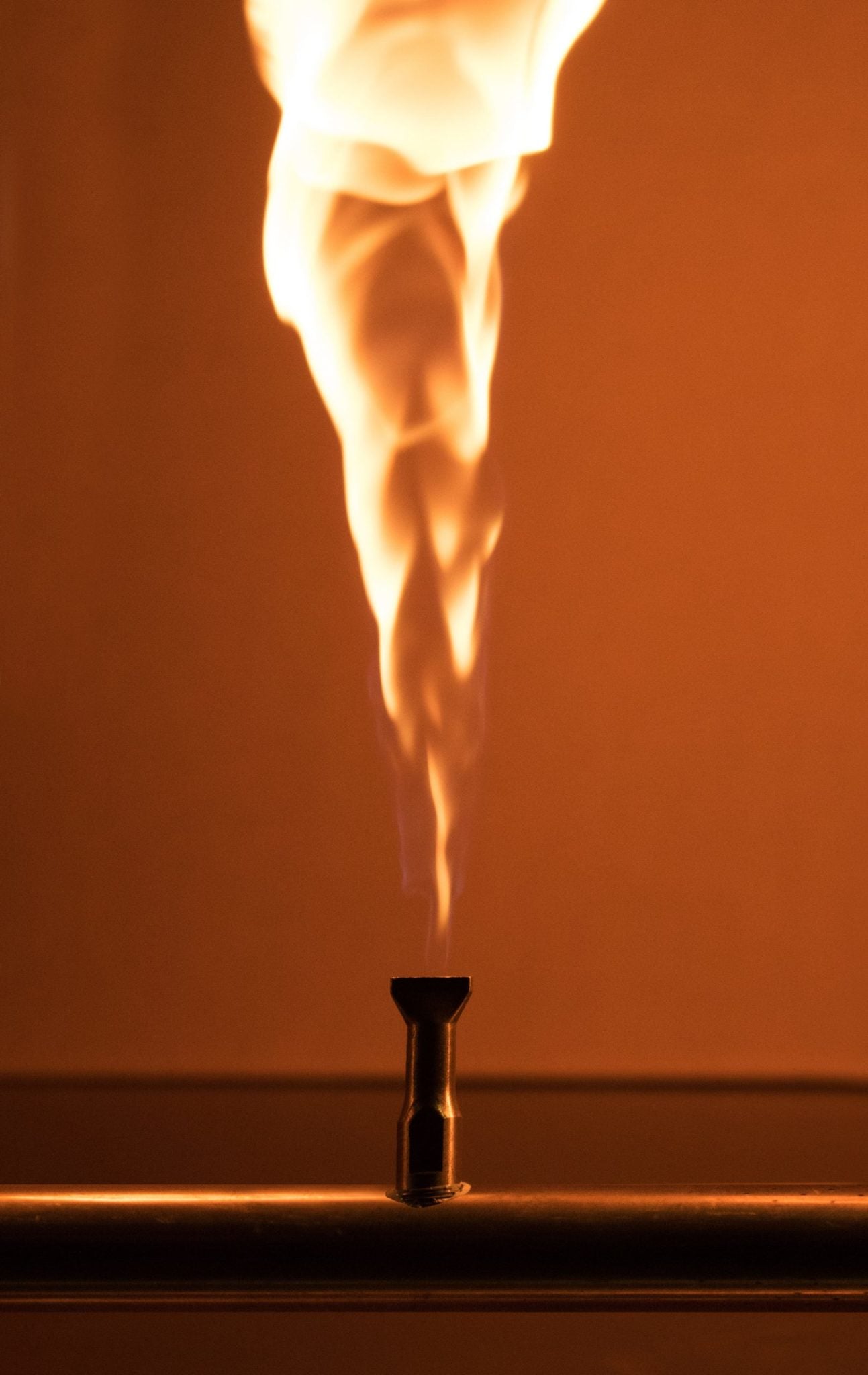

Enhance your fire pit experience with our Rectangle Stainless Steel AWEIS systems- LC Certified with Brass Bullet Burner.
The AWEIS SC is the smallest Electronic Ignition System for use in Fire Bowls and Fire Pits today. Its small size, especially in height makes it the perfect match for those features that do not have much room in the vertical.
Pan Size: All pans are 12″ Wide. All burners are 6″ Wide.
- 24″ with 18″ burner 90K BTU
- 36″ with 24″ burner 120K BTU
- 48″ with 36″ burner 180K BTU
- 60″ with 48″ burner 210K BTU
- 72″ with 60″ burner 255K BTU
- 84″ with 72″ burner 285K BTU
All Weather Electronic Ignition System AWEIS
- New “Dual Pilot Gas Technology” which prolongs life of Igniter considerably
- Maximum Gas Output: 290K Btu/hr
- Inlet Gas Press. Limit: 0.5 PSI
- Standard Pilot Burner Configuration: (1) Pilot Burner
- Inlet / Outlet Size: 1/2” FIP
- Electrical Rating: 24VAC
- Flame / Heat Sense: Thermopile
- Ignition Type: Silicon Nitride Hot Surface Ignition (Glow Plug)
- Control Box Dimensions: 4 1/2” x 5” x 4 1/2” (W x L x H)
