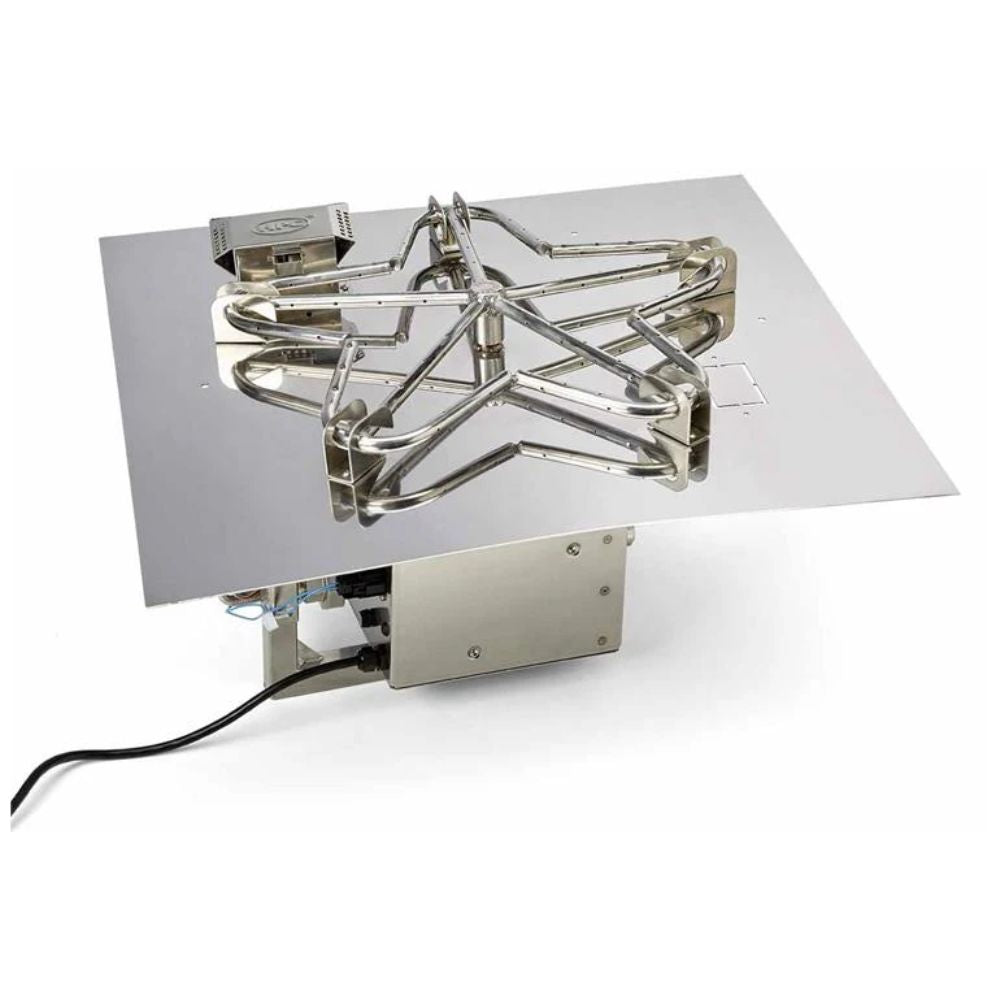

Penta 18″ Square Hot Surface Electronic Ignition System

SKU: 18FSSEI-SQ-120VAC-NG
Introducing Our Electronic Ignition Kits. Enhance your fire pit experience with our Penta 18″ Square Hot Surface Electronic Ignition System.
1 Gas Type: Select Gas Type
Regular price $2,878.13
Regular price $0.00 Sale price $2,878.13
Sale Sold out
Buying for clients? Join our Pro Program
  • Shop With Confidence With Our Price Match Promise
  • Free Shipping On All Orders Over $129
View full details
Back

Introducing Our Electronic Ignition Kits

Enhance your fire pit experience with our Penta 18″ Square Hot Surface Electronic Ignition System.

  1. Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame.
  2. Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.
  3. Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features:

  • Fully Assembled- ready to install. Control components are protected within valve box.
  • Start via wall switch, remote or whole house system; auto re-light if flame is lost.
  • Ignition is complete using a robust and reliable Hot Surface igniter.
  • On/Off models: Use with optional wall switch or Remote Control available.
  • High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
  • 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
  • 24vac Option: Typically used pool side or with other lower voltage requirements.
  • Natural Gas or Liquid Propane: Factory built & tested for either fuel.
  • Internal temperature monitoring with overheat auto shutoff.
  • CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
  • Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

On/Off Models: Includes the convenience and safety features- optional remote control available.
High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).


    Back

    Customer Reviews

    Be the first to write a review
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    0%
    (0)
    Back
    Back
    Back
    SKU 18FSSEI-SQ-120VAC-NG
    Manufacturer Hearth Products Controls
    Weight 40.0 lb
    Ignition 110V Ignition
    Shape Square
