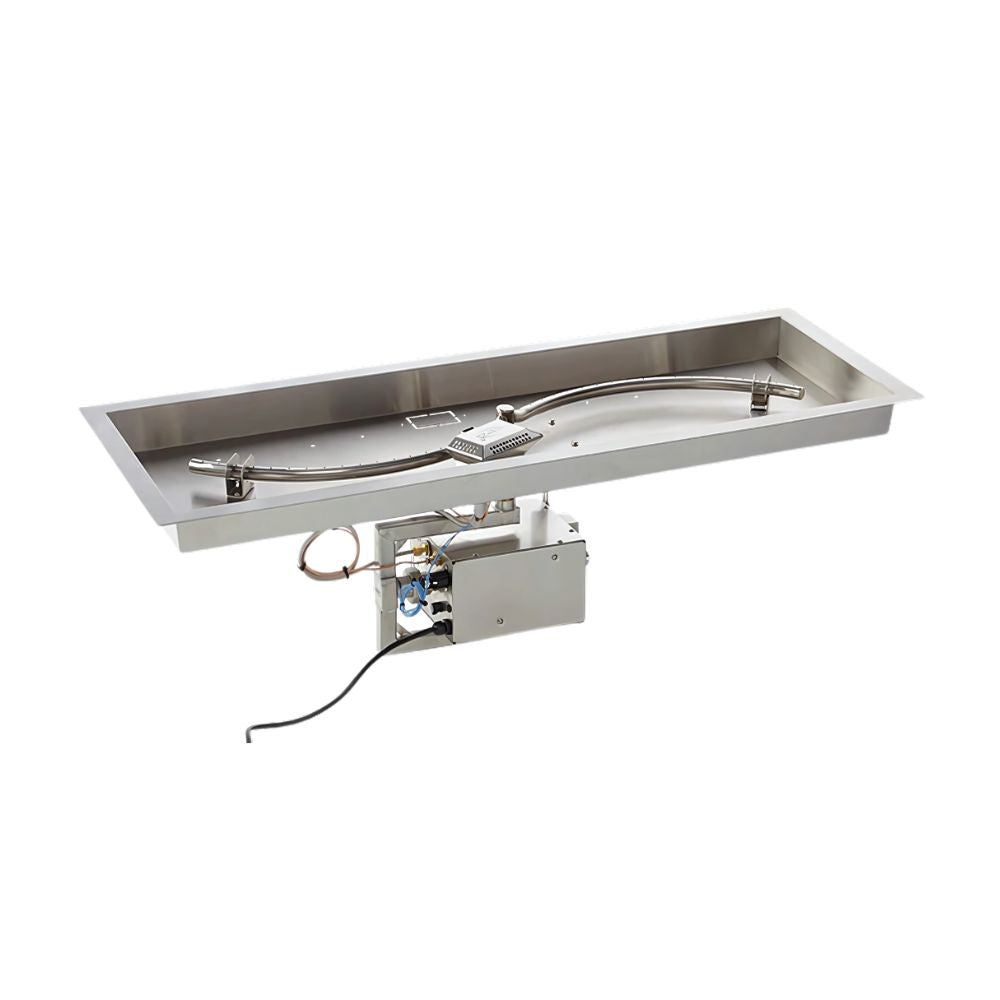

78″ X 16″ S Burner Hot Surface Electronic Ignition System

SKU: 78x16SSEI-S-120VAC-NG
How It Works Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame. Operation: While enjoying the ambiance ...
1 Gas Type: Select Gas Type
Regular price $4,511.64
Regular price $0.00 Sale price $4,511.64
Sale Sold out
Buying for clients? Join our Pro Program
  • Shop With Confidence With Our Price Match Promise
  • Free Shipping On All Orders Over $129
View full details
Back
This is an oversized item and shipping charges may apply.
How It Works Start Up: This is done by use of a wall switch or remote control. When the ON command is received, the system completes initial safety checks then starts flow of pilot gas. After 5 seconds the hot surface igniter glows igniting pilot flame. When the system confirms pilot flame present, the main burner gas will flow ignited by the pilot flame. Operation: While enjoying the ambiance of your fire pit, the system is at work monitoring flame status, internal temperatures / voltages and other safety parameters. If flame loss does occur, the system will turn off all gas flow, and then restart by automatically commencing Start sequence.

On/Off Models: Includes the convenience and safety features- optional remote control available. High / Low Flame Control Models: This option includes a smart remote control with 2-way communication with the fire pit. Remote allows flame height control while receiving information from fire pit to advise user of fire pit status (flashing LED).

Shut Down: To turn OFF the fire pit simply use wall switch, remote control or whole house system.

Features

  • Fully Assembled- ready to install. Control components are protected within valve box.
  • Start via wall switch, remote or whole house system; Auto re-light if flame is lost.
  • Ignition is complete using a robust and reliable Hot Surface igniter.
  • On/Off models: Use with optional wall switch or Remote Control available.
  • High/Low Flame Control Models: Adjust high setting to low setting- ~45% turn down (Remote Control included).
  • 120vac: Standard outdoor grounded power cord- simply plug into GFCI outlet.
  • 24vac Option: Typically used pool side or with other lower voltage requirements.
  • Natural Gas or Liquid Propane: Factory built & tested for either fuel.
  • Internal temperature monitoring with overheat auto shutoff.
  • CSA Certified in US & Canada to ANSI Z21.97-2014 / CSA 2.41-2014 requirements.
  • Optional Controls: On/Off Remote, Timers, Power Supplies and an Emergency Shutoff.

Model # / Description / BTU

36X14SSEI-S / 36×14″ pan with S-Fire Burner / 75K 42X14SSEI-S / 42×14″ pan with S-Fire Burner / 85K 54X16SSEI-S / 54×16″ pan with S-Fire Burner / 110K 66X16SSEI-S / 66×16″ pan with S-Fire Burner / 135K 78X16SSEI-S / 78×16″ pan with S-Fire Burner / 165K
Back

Customer Reviews

Be the first to write a review
0%
(0)
0%
(0)
0%
(0)
0%
(0)
0%
(0)
Back

This is an oversized item and shipping charges may apply.

You can see the shipping fee on the checkout page (It's typically $125).

  • Products in-stock at our warehouse will ship within 1 business day.
  • Most products are shipped from our warehouse in Littleton, Colorado.
  • Some custom-finished products and special items will ship from the manufacturer. In these cases additional shipping time is needed.
  • Additional shipping fees apply to Canada, Alaska and Hawaii.

Questions?

Back
Back
SKU 78x16SSEI-S-120VAC-NG
Manufacturer Hearth Products Controls
Weight 40.0 lb
Ignition 110V Ignition
Shape Rectangle
